| Modal No. |
OD-MPPT-BUCK-48-100/15 |
| Technology |
MPPT |
| Product Series |
OD-MPPT-BUCK-EV |
| Battery Operating Mode |
48V |
| SPV (Pmax) |
900 W |
| Solar Input Voltage (Voc max) |
100Voc (Open Circuit Voltage) |
| Solar Input Voltage (Voc min) |
72V |
| Charging Method |
MCCV Mode |
| Battery Type |
Lead- Acid (Tubular/SMF) |
| Self-Power Consumption |
<2W |
| Max Charging Current |
15A |
| Display |
16x2 Character Display
(Continuous Working) |
Parameters Displayed on
LCD |
Solar Voltage (Vsol), Solar Current
(Isol), Solar Power (Sol PWR), Battery
Voltage (Vbat), Charging Current (Ichg),
Solar Panel Generated Unit
|
| |
|
| Indications |
Solar Reverse, Battery Reverse/Fuse
Blown LED |
| Switches |
Power ON/OFF |
Solar Reverse Current
Protection |
Yes |
| Battery Reverse Protection |
Yes(1 Fuse) |
| Fuse Protection |
Yes (Externally Accessible) |
| Spare Fuse Provided |
Yes |
| Switching Element |
MOSFET |
| Efficiency |
Up to 95% |

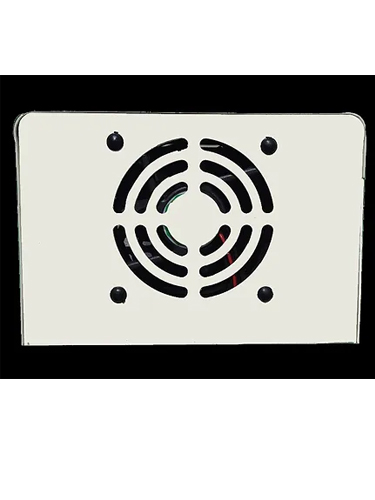

| Cooling |
Fan (Forced Air Cooling) with adaptive
Controlling forLonger Life. Fan turns
once the Charging Currentgoes above
4A and turns off when it goes below 2A.
|
| |

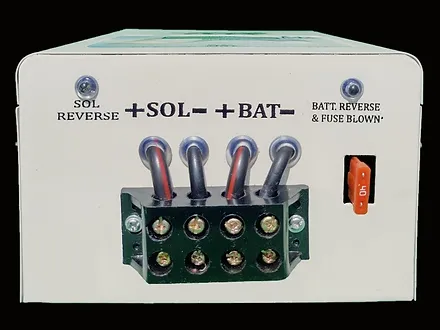

| Connection |
Bakelite Screw Terminal |
| Enclosure Type |
MS (Ivory Color) |

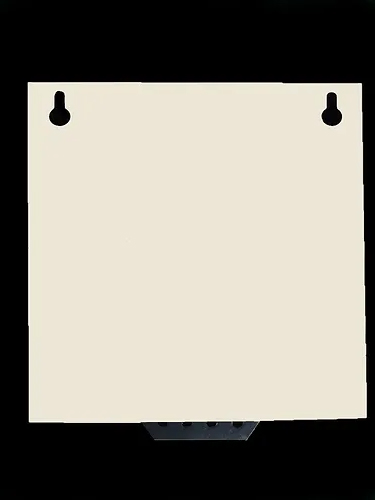

| Mounting Type |
Retrofit Wall Mounted |
| Temperature |
0˚C TO 55˚C |
| Product Dimensions (L*W*H) |
18*16*10 CM |
| Packaging Dimensions (L*W*H) |
22*22*14 CM |
| Weight |
1.5 Kg
|
