Modal No.
|
OD-MPPT-SCC-12/24-75/25
|
|
Technology
|
MPPT
|
|
Product Series
|
OD-MPPT-SCC
|
|
Battery Operating Mode
|

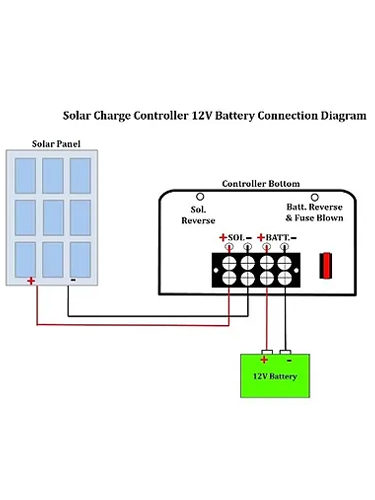

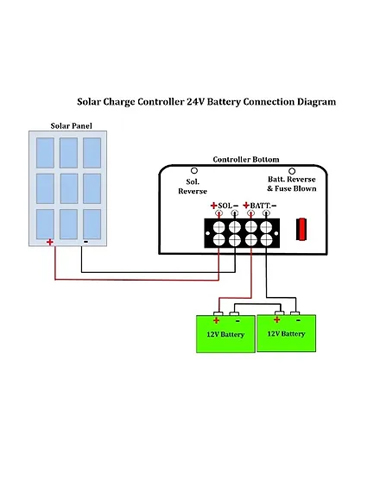

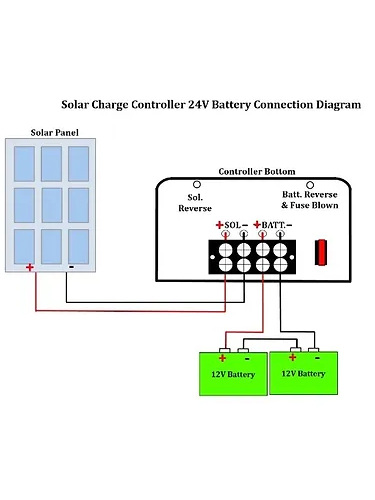

12V/ 24V
|
|
SPV (Pmax)
|
400W (12V Battery)/ 800W (24V Battery)
|
|
Solar input voltage (Voc max)
|
75Voc (Open Circuit Voltage)
|
|
Charging Method
|
MCCV Mode
|
|
Battery Type
|
Lead- Acid (Tubular/SMF)
|
|
Self-Power Consumption
|
<2W
|
|
Max Charging Current
|
25A
|
|
Display
|
16x2 Character Display
(Continuous Working)
|
|
Parameters Displayed on
LCD
|
Solar Voltage (Vsol), Solar Current (Isol),
Solar Power (Sol PWR), Battery Voltage
|
| |
(Vbat),Charging Current (Ichg), Solar
Panel Generated Unit
|

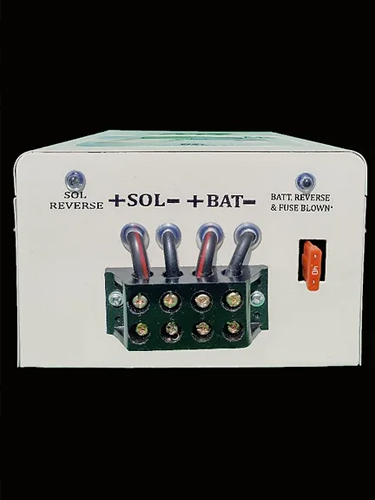

| Indications |
Solar Reverse Led, Battery Reverse/
|
|
|
Fuse Blown Indication LED
|
|
Solar Reverse Current
Protection
|
Yes
|
|
Battery Reverse Protection
|
Yes
|
|
Fuse Protection
|
Yes (Externally Accessible)
|
|
Spare Fuse Provided
|
Yes
|
|
Switching Element
|
MOSFET
|
|
Efficiency
|
Up to 95%
|
|

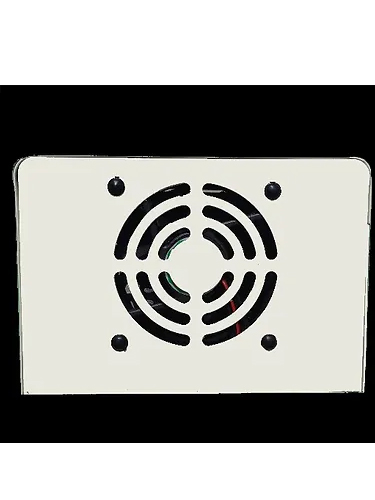

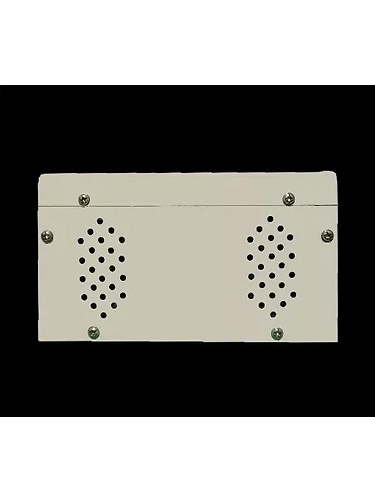

Cooling
|
Fan (Forced Air Cooling) with adaptive
Controlling for Longer Life. Fan turns on
|
| |
once the Charging Current goes above
6A and turns off once it goes below 4A.
|
|
Connection
|
Bakelite Screw Terminal
|
|

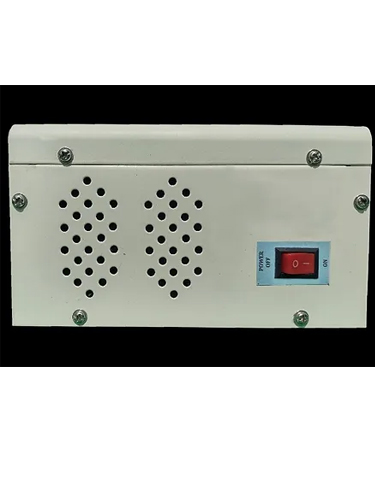

Enclosure Type
|
MS (Ivory Color)
|
|

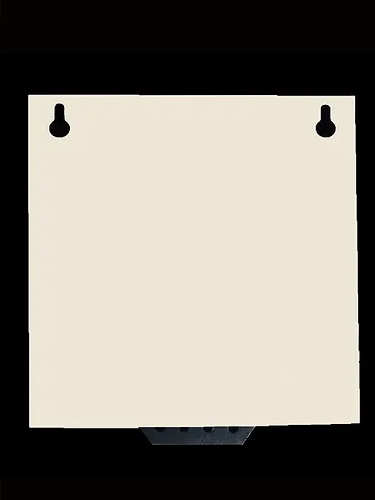

Mounting Type
|
Retrofit Wall Mounted
|
|
Feature
|
Highly Recommended to Charge 12V
battery from 24V type Solar Panels or
|
| |
higher rating Solar Panels with Open
Circuit Voltage Range up to 75V.
|
Product(External)
Dimensions (L*W*H) |
18 *16 *10 CM
|
|
Packaging Dimensions
(L*W*H)
|
22*22*14 CM
|
|
Weight
|
1.540Kg
|
