| Modal No. |
OD-MPPT-BOOST-EV48-50/10 |
| Technology |
MPPT (Boost) |
| Product Series |
OD-MPPT-EV |
| Battery Operating Mode |
48V |
| SPV (Pmax) |
600W |
| Solar Input Voltage (Voc max) |
50Voc (Open Circuit Voltage) |
| Solar Input Voltage (Voc min) |
30V |
| Charging Method |
MCCV Mode |
| Battery Type |
Lead- Acid (Tubular/SMF) |
| Self-Power Consumption |
<2W |
| Max Charging Current |
10A |
| Display |
16x2 Character Display (Continuous
Working) Display Bakelite turns ON
during the Charging Time only. |
Parameters Displayed on
LCD |
Solar Voltage (Vsol), Solar Current (Isol),
Solar Power (Sol PWR), Battery Voltage |
| |
(Vbat), Charging Current (Ichg), Solar
Panel Generated Unit |
| Indications |
Solar Reverse, Battery Reverse/Fuse
Blown LED |
| Switches |
Power ON/OFF |
Solar Reverse Current
Protection |
Yes |
| Battery Reverse Protection |
Yes |
| Fuse Protection |
Yes (Externally Accessible) |
| Spare Fuse Provided |
Yes |
| Switching Element |
MOSFET |
| Efficiency |
Up to 95% |

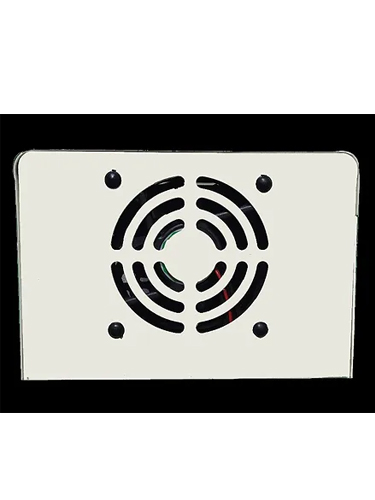

| Cooling |
Fan (Forced Air Cooling) with adaptive
Controlling for Longer Life. |
|
|

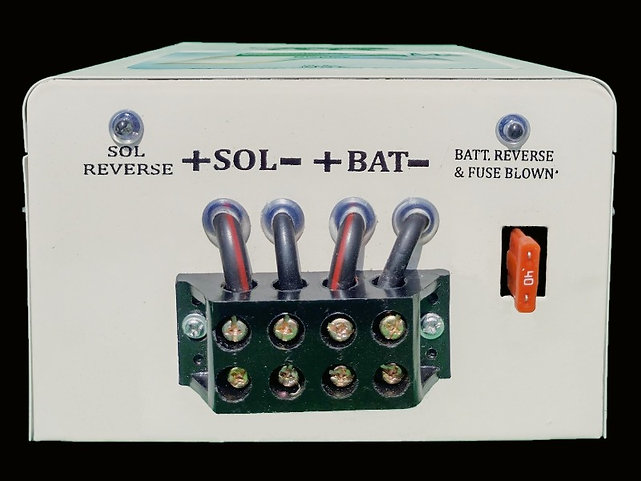

| Connection |
Bakelite Screw Terminal |
| Enclosure Type |
MS (Ivory Color) |
| Mounting Type |
Retrofit Wall Mounted |
| Temperature |
0˚C TO 55˚C |
| Product Dimensions (L*W*H) |
18*16*10 CM |
Packaging Dimensions
(L*W*H) |
22*22*14 CM |
|
Weight
|
1.5 Kg
|
